Pre-Surveying: Laying out The (Outer) Corners of The Soccer Fields

Surveying - Repainting - All Dimensions

Determining where to position the field and laying out the (outer) corners is a two- or three-person job. For the surveying, laying out and painting all the lines on the field for the first time, it's best to have a six- or seven-person team. We pre-survey, lay out the corners (or outer corners of parallel fields) beforehand, to avoid that half the team has to stand around waiting.

Some full-size fields have anchored goals. Those are not to be moved. The length of the field is set by the distance between the goals. The goals may not be exactly parallel, but it's more important that the goal line is straight and passes through the goal posts: eyeball.
Some large fields have an adjacent baseball diamond: keep the touch line at least three feet away from the gravel, so the assistant ('side') refs can run safely along the field.

Try to avoid bad spots in the field (overwatered, bare, irrigation control boxes) - but it's often not possible. The repainters should mark dangerous objects in the soccer fields.

2 fields, parallel 2 fields, not parallel single fields
Walter Hays
El Carmelo
Hoover Park*
Hoover School
*Hoover Park has 3 parallel fields and a fourth field to the side.
Hoover PARK is on Cowper Ave, near Safeway; Hoover SCHOOL is in Charleston Ave near to JLS and Mitchell Park.

For parallel fields only mark the outer corners. Try to keep fields at least 15' apart.

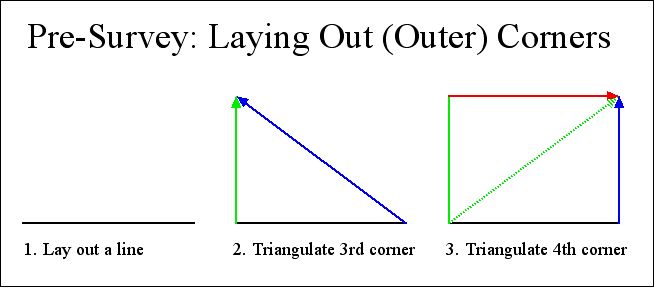

Make a guess where to put the field and lay it out to try if it fits:

  1. Put in 1 metal stake, hook in measuring tape and measure to next spot; put in metal stake.
  2. Hook measuring tapes in the metal stakes at the ends of the first line and triangulate to third spot.
  3. Triangulate to fourth spot; you could confirm that the measuring was done correctly by checking the diagonal.

If the soccer field fits the area comfortably (it needs a little room to the sides, at least 3-5 feet), replace the metal stakes by the yellow plastic stakes:
Predrill hard ground by hammering in the blue hexagonal (octogonal?) driver(?). Loosen it by lightly hammering it sideways. Put in the yellow stake for about 1/3, then spray a solid 6" to 8" diameter dot of field paint around it (shake paint cans for about a minute before use.) Then hammer in yellow stake to slightly below dirt level. (If the paint is applied after hammering in the stake, the yellow won't stand out.)
If the pre-survey is more than 5 days before the surveying, the paint on the dots needs to be refreshed. Take care not to paint the stake.
Be sure not to leave metal stakes on the field. They may get stuck in the mowers and make the City very unhappy with us.

Equipment for one team, 2-3 fields:

Walter Hays School (with site map)
Fairmeadow School (no site map)
Hoover School (with site map)
El Carmelo School (no site map)
Hoover Park (with site map)
Ramos Park (no site map)
Duveneck School (no site map)
Greer Fields (no site map)
Pythagoras' theorem to recalculate the diagonals for triangulation.
Bring a calculator with a square root function when you're surveying.

a2 + b2 = c2
