Pictorial Introduction to 'Graphics for The Blind'

Diagrams 2: Objects and Connections

next page

pictures ¼ size

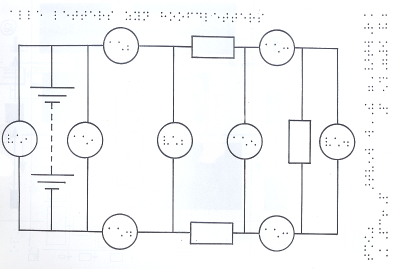

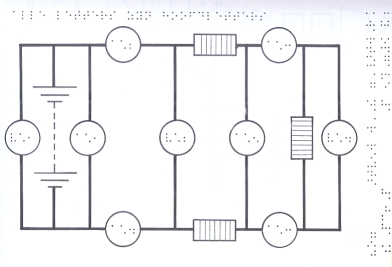

In the rendering on the left, the blind reader tracing the wire, arriving at an object might get the impression it's the cable branching out; different line widths make the picture clearer. Also note the resistors' hatching.
