Pictorial Introduction to 'Graphics for The Blind'

Geometry

next page

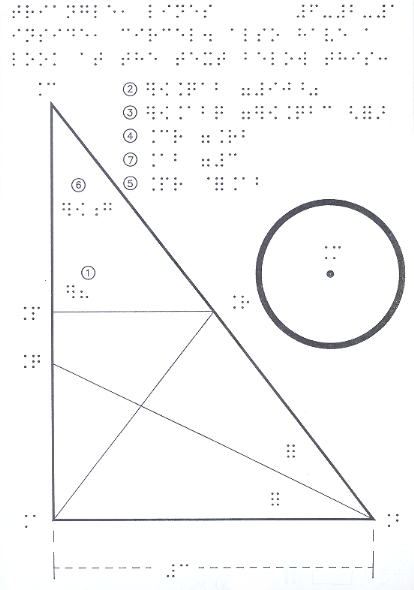

Braille picture ½ size

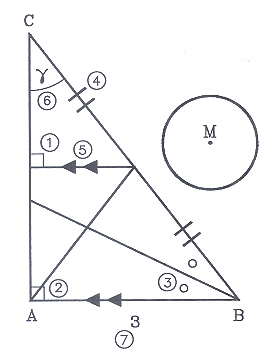

Basic Editing in Geometry
Orthogonal sign replaced by braille code.
Orthogonal sign replaced by remark in text because there's no fitting palce to put braille code.
Equal-angles signs replaced by remark in text.
Equal-distances signs replaced by remark in text; to allow for that, characters P, Q and R were added.
Parallel-lines signs replaced by remark in text.
Arc not copied, Greek character preceded by braille code for 'angle.'
Length statement replaced by, or at least repeated in text.
